1,2&3 Bedroom Units-ID0001
Ready to build?
File Type:
CAD, PDF
Delivery:
Instant Digital Download

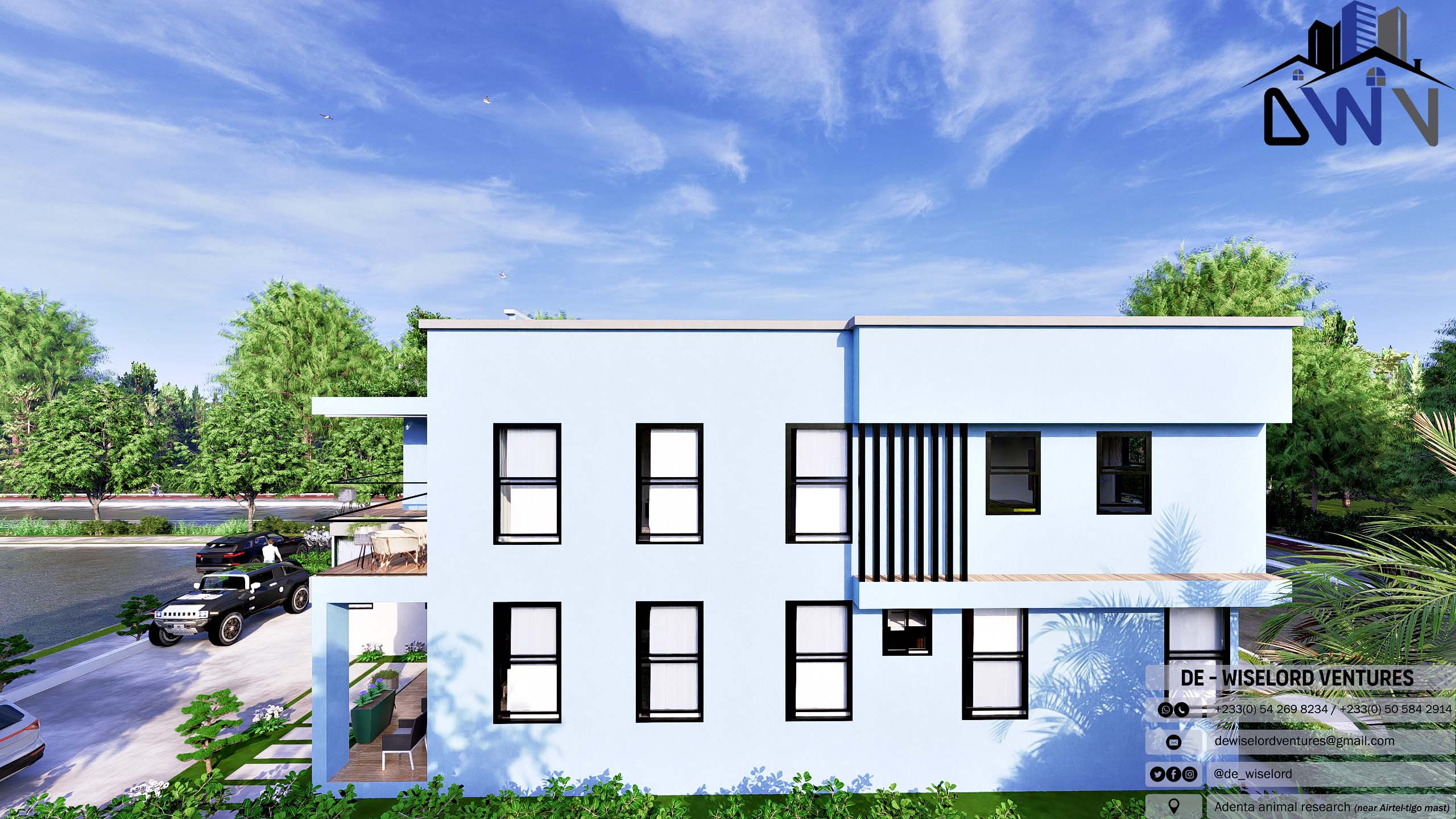

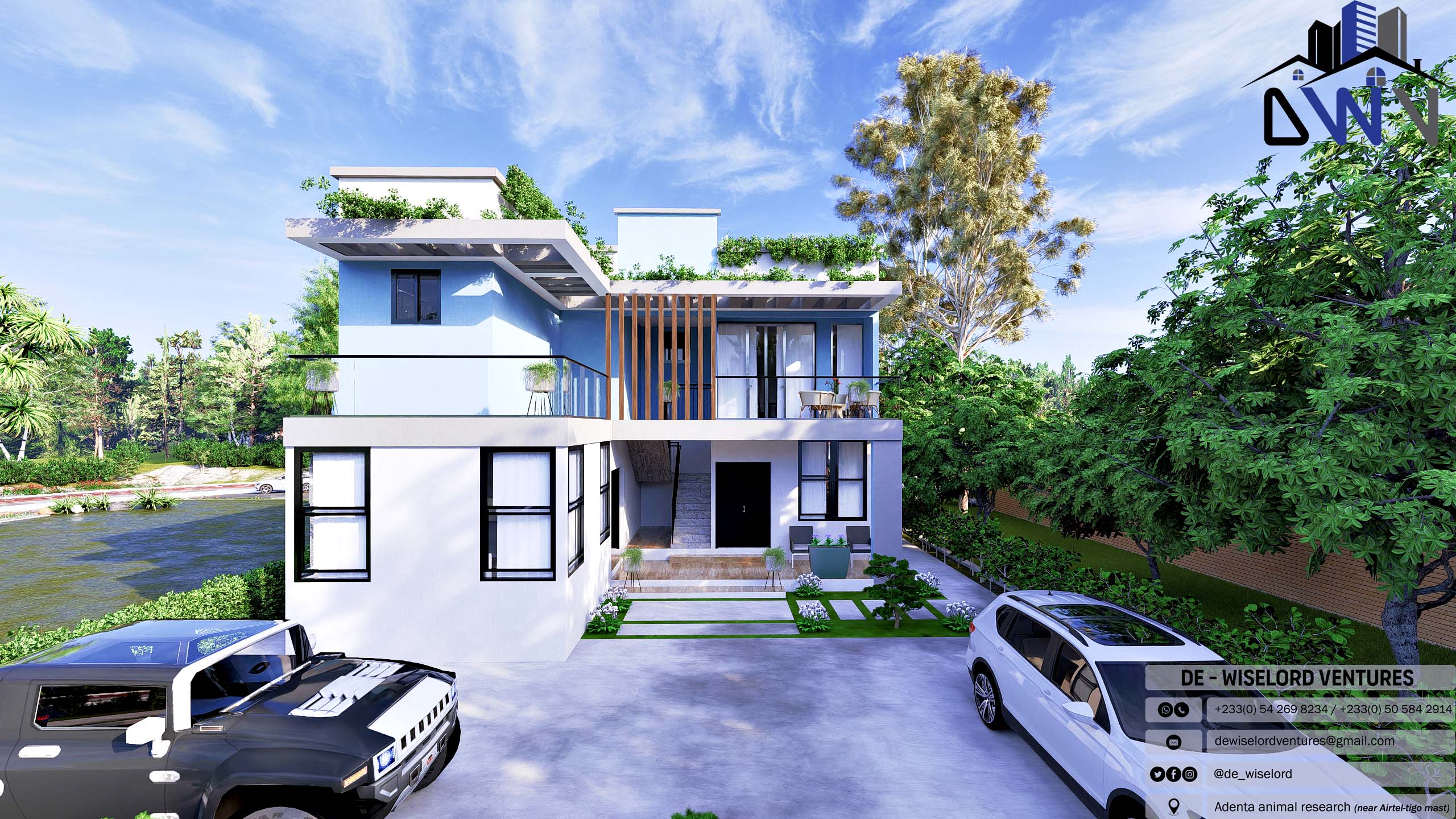

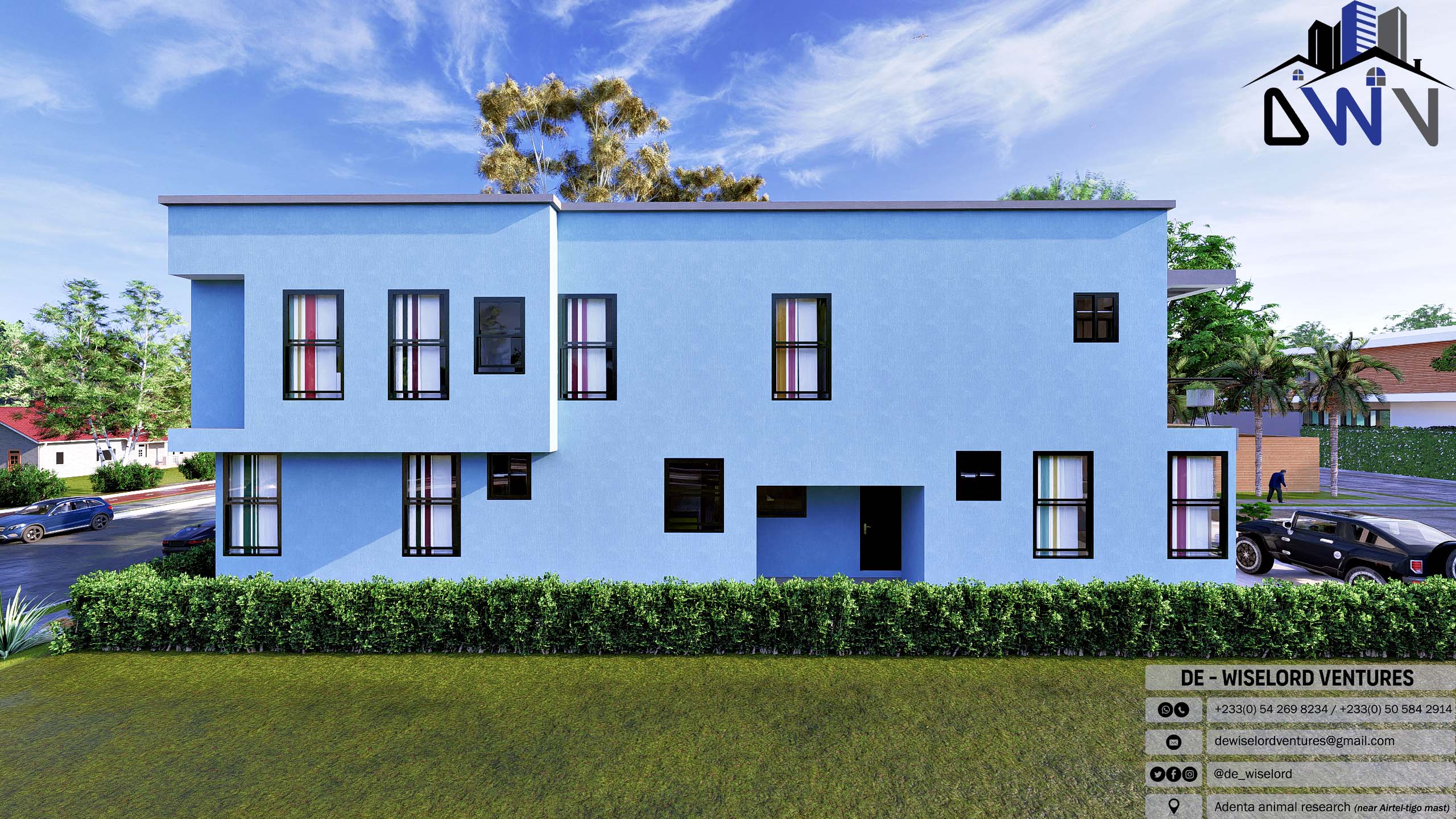

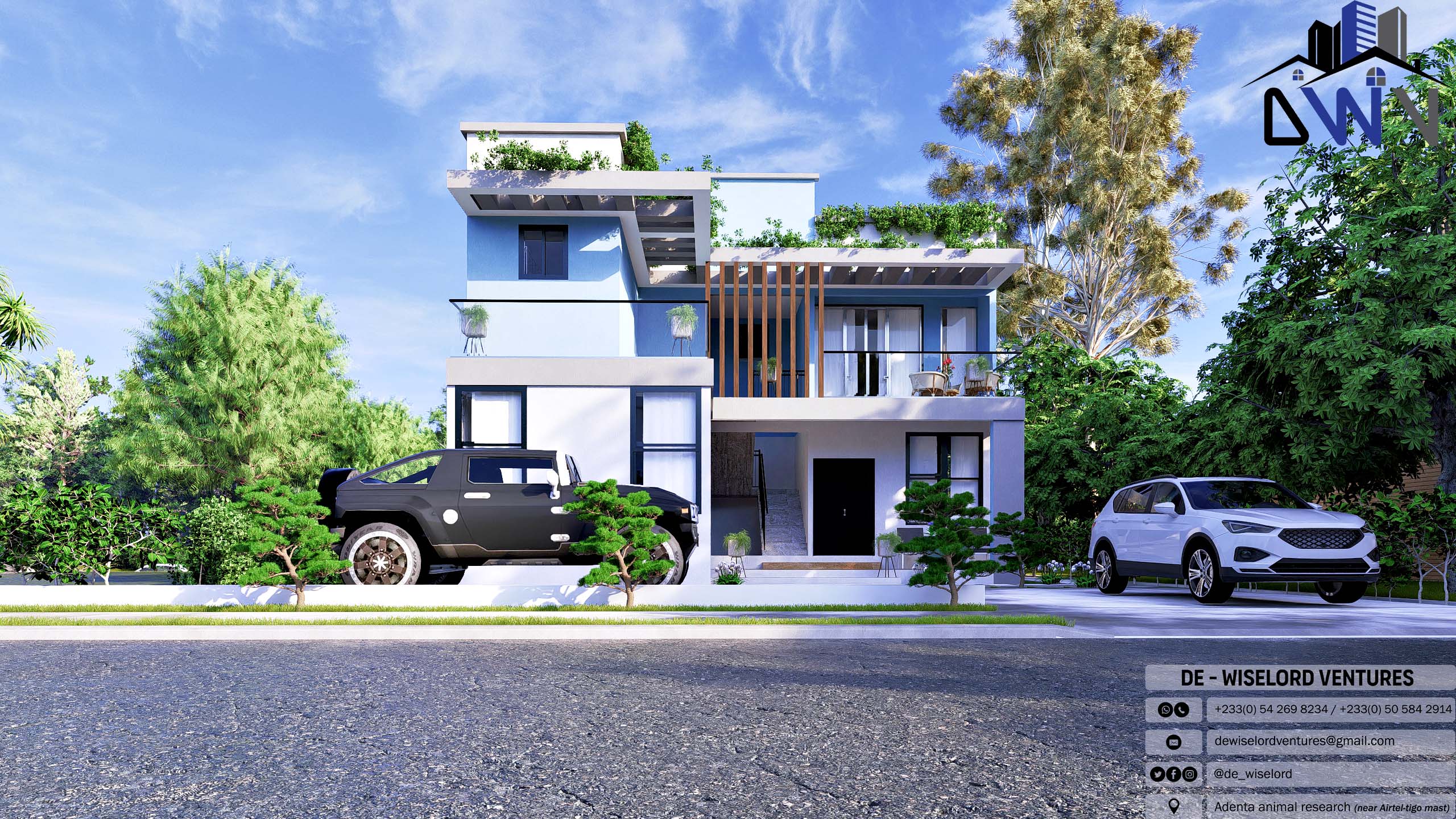

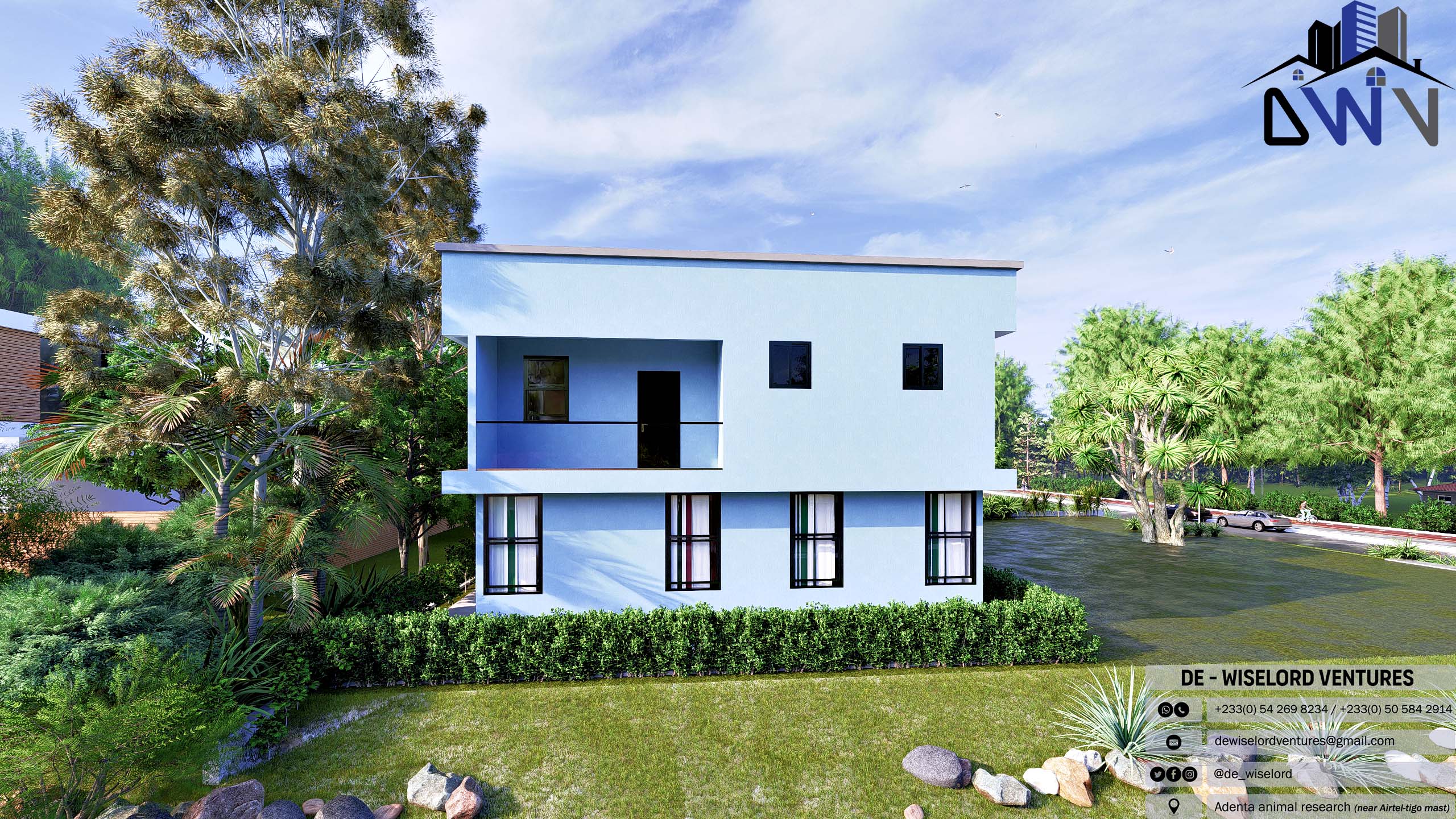

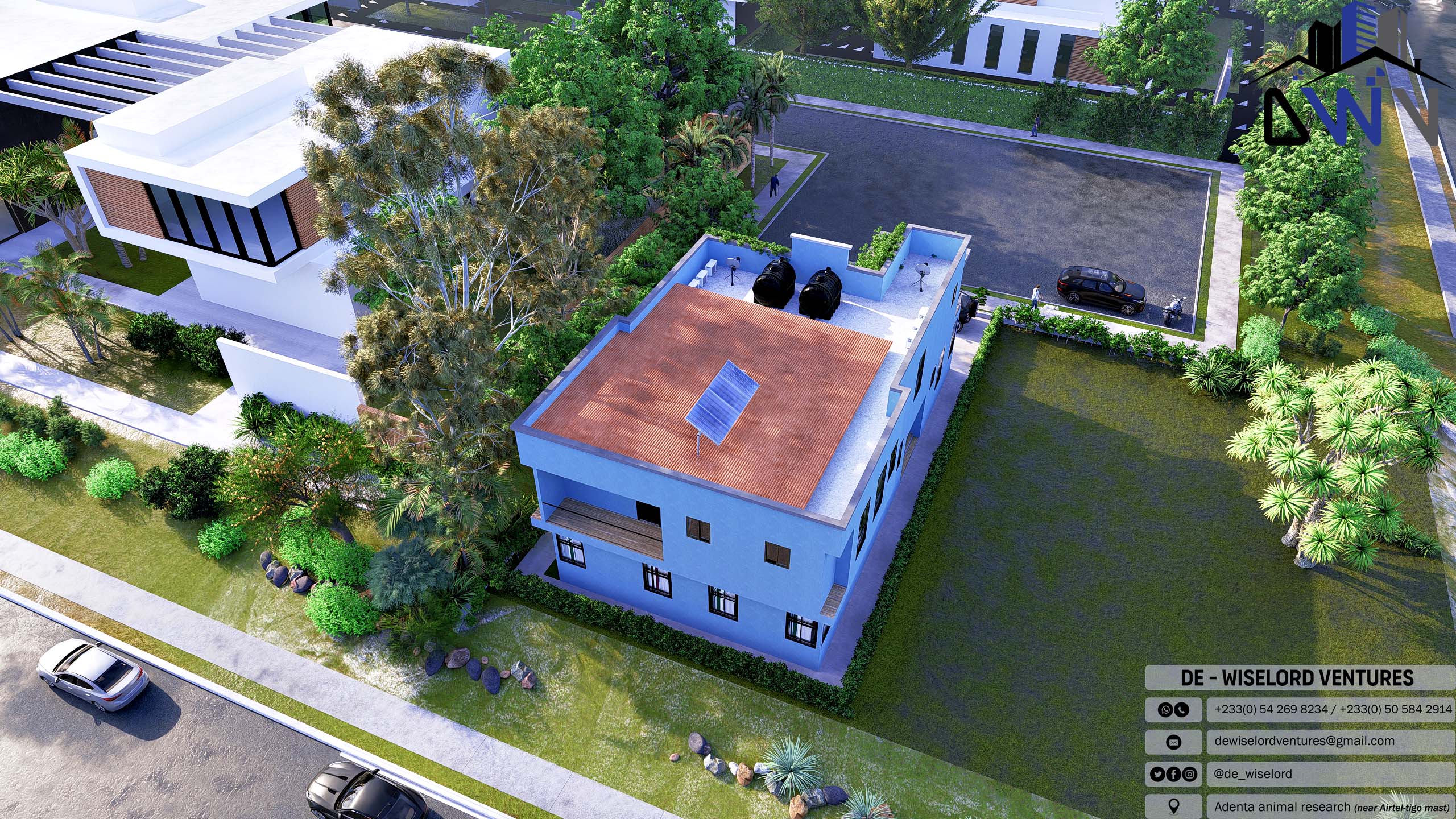

Designed for flexibility and strong property returns, this multi-residential floor plan offering two self-contained ground-floor apartments and an expansive three-bedroom upper-level home. Whether you’re accommodating extended family or building an investment property, the design offers an excellent balance of privacy, functionality, and rental potential. A smart choice for developers and property owners focused on maximizing yield and long-term returns.

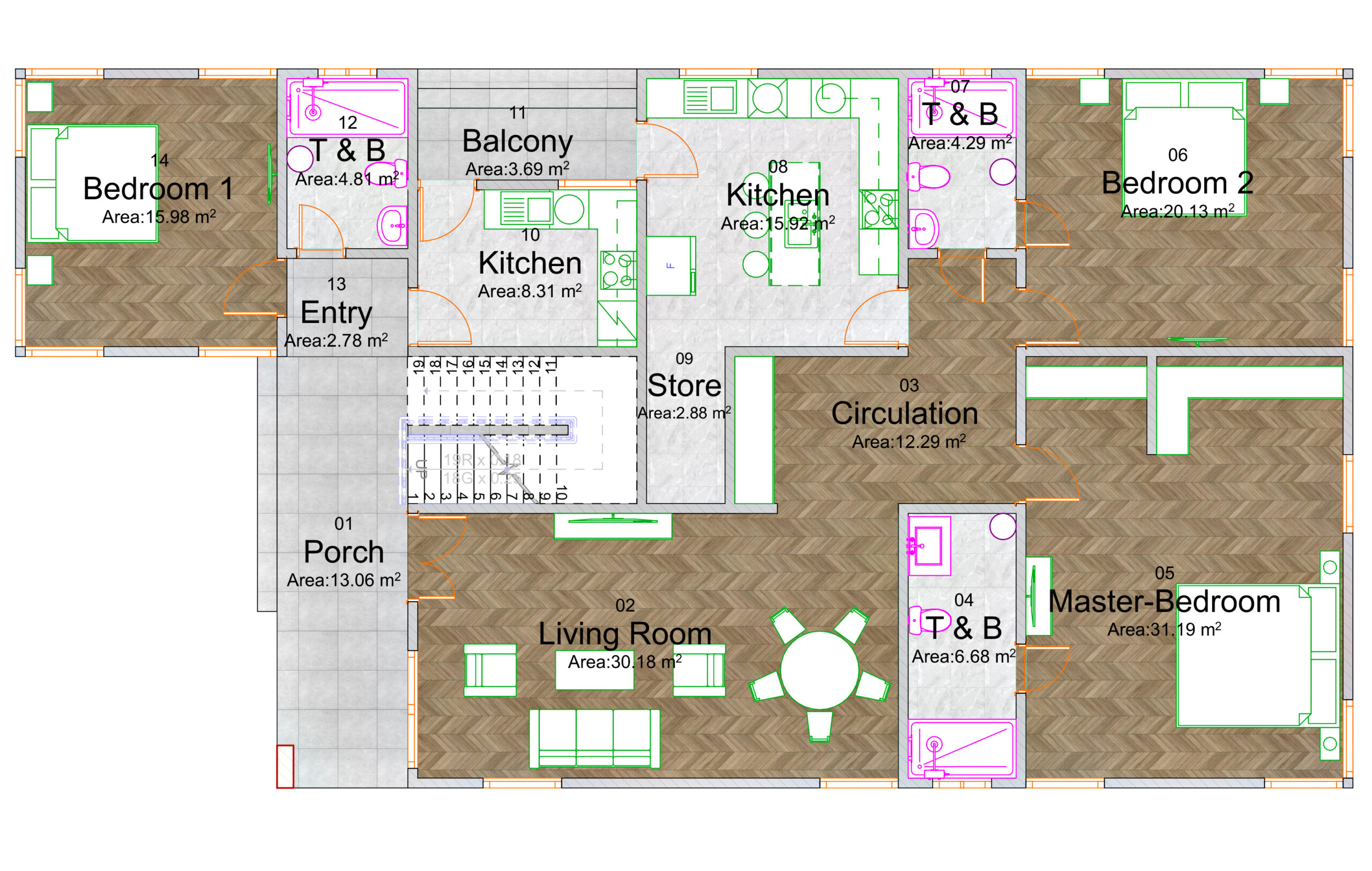

Ground Floor (Two Self-Contained Units)
- 2-Bedroom Apartment: Features a private master suite (31.19 m2) with ensuite bath, a second bedroom (20.13 m2), dedicated living room (30.18 m2), full kitchen (15.92 m2), store room, and guest bath.
- 1-Bedroom Apartment: Features a self-contained bedroom suite (15.98 m2) with ensuite bath, private kitchen (8.31 m2), dedicated entrance (2.78 m2), and private balcony access.

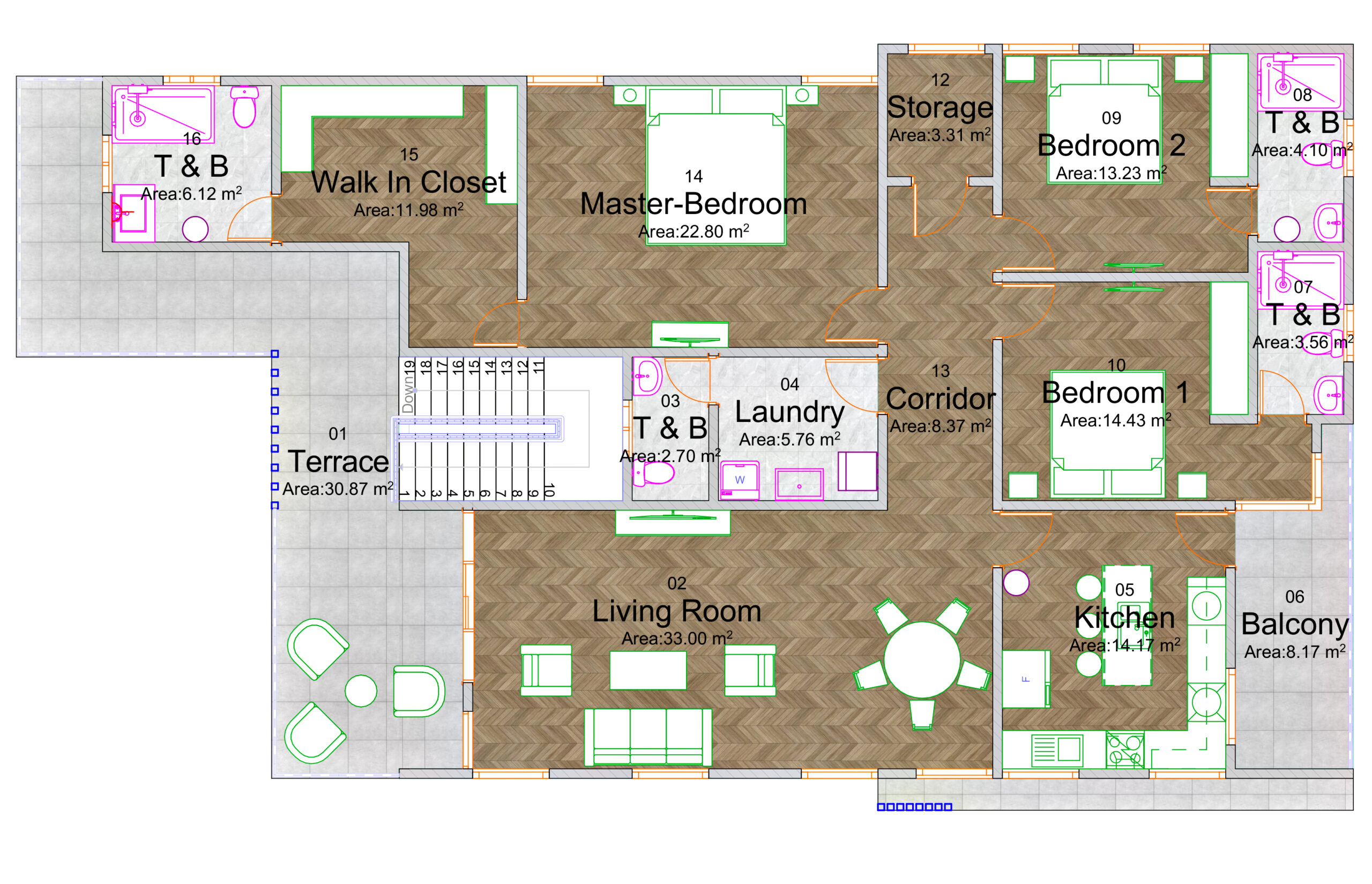

First Floor (Spacious 3-Bedroom Residence)
- Master Suite: Primary bedroom (22.80 m2) equipped with a large walk-in closet (11.98 m2) and private bath.
- Secondary Bedrooms: Two additional bedrooms (14.43 m2 and 13.23 m2), each with its own dedicated bath.
- Living & Utility: Large secondary family lounge (33.00 m2), standalone laundry room (5.76 m2), extra storage, and a separate kitchen space (14.17 m2).
- Outdoor Spaces: Expansive front terrace (30.87 m2) for entertaining plus a private rear balcony.
Bedrooms
6
Bathrooms
7 Bathrooms
Floors
2 Bathrooms
Total Area
354.76 Bathrooms
Build Ready
Fully compliant with international building codes.
Request for 3d file
You can get the 3D Design by contacting us at hello@de-wiselord.com
